INSULATING GLAZING UNITS /INSULATING UNITS WITH INTEGRAL BLINDS
THE GLAZING UNIT IS AVAILABLE WITH ALUMINUM OR WARM EDGE SPACER
which include two glass panes, the space between glass panes is filled with argon , which is heavier than air and is characterized by better thermal insulation properties with aluminium or warm edge spacer bar. When placed in the double glazing, which makes up 75-80% of the total area of the joinery, argon improves its overall heat transfer coefficient. Combined with these two products high selective/low E glass, you will provide the most comfortable environment in your office building or home.
Good consumables, such as a sealant for the periphery of the double-glazed window, the different molecular dryers embedded in the spacer, as well as the spacer itself, are all materials of different qualities, which in combination with the technology and technological discipline of the implementation of the double-glazed windows, greatly determine the reliability and reliability its durability.
The production process of glass units in the company is fully automated, starting with cutting the glass and the spacer, goes through the washing of the glass in the dishwasher, the automatic filling of the spacer with a dryer, the application of primary sealant (butyl), the assembly of glass and recalibration ends with the robotic application of the secondary sealant (silicone or polysulfide). This technology allows us to give a 5-year warranty on the sealing of glazing.

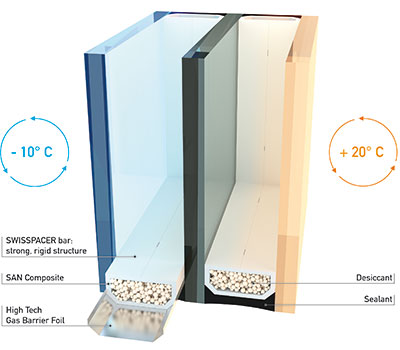

Warm Edge Spacer- The heart of energy saving windows:
Warm edge spacer bars insulate the edges of an energy efficient sealed unit. They keep the panes of glass apart and maintain the integrity of the air gap that insulates a building from heat loss through windows.
Benefits of warm edge spacer
Warm edge spacer thermally-optimised range of spacer bars are made of an insulating plastic composite material. Spacer reduces the amount of heat lost through sealed units so you get:
- Lower heating bills
- A more comfortable temperature in the home
- A reduction in the risk of condensation forming at the edge of the sealed unit
- Long lasting performance
Long performance:
A warm edge spacer bar helps improve a window’s energy efficiency but it has other important functions. It keeps the panes of glass apart and with sealants and desiccants, should be a gas tight barrier to prevent moisture vapour getting in and insulating gas leaking out of the sealed unit. If the spacer bar doesn’t stop moisture vapour transmission and gas leakage, the sealed unit will become energy inefficient and eventually fail completely.
| Thickness glazing [mm] |
Kind |
Glass units |
Min size [mm] |
Max size [mm] |
| 12 - 100 | silicon / polisulfid | Yes | 200 / 200 | 6000 / 3210 |
Integral blinds:
Magnetic or automatic blinds in double glazing represent the best solution for controlling sunlight and privacy in the premises. Hermetically sealed inside the glass panes (with 20mm and 27mm spacers), they provide full protection against dirt, dust or weather and do not need cleaning. They are available in two variants - manual and mechanical drive. The main color range is in three colors, individually can be customized.
Windows with integrated blinds combine four advantages in one window only:
Hygiene and comfort:
There are advantages to cleaning because integrated blinds are protected from weather and dirt, and there are advantages to facade designs where shutters cannot be used.
Sun protection:
These recessed shutters are located between the windows and thus no additional construction work is required. Built-in blinds are only suitable in the closed state as perfect sun protection. By adjusting the angle of the slats, you can adjust the amount of incoming light precisely.
Protection of privacy:
The product offers excellent privacy protection, since the aluminum coating of this double Venetian blind leaves almost no light and provides a perfect blackout.
Thermal protection:
Mounted in the window frame it provides excellent values of Uv. In this way, the window with integrated shutters achieves a Uv value of less than 0.60 W / (m2K).The main colour range is in three colours, individually can be customized.
Ideal for:
- homes ,offices and conference rooms
- medical establishments and laboratories
- private homes, restaurants, apartments
- dividing walls
